Graphtec FC8600 Series Cutter Plotter

Overview

The FC8600 series high performance cutting plotter is an industry leader for sign makers, graphic artists, automotive aftermarket professionals, countertop installers and other related users.

  • Maximum cutting speed of 58.5 in/sec
  • 4.0G Maximum Acceleration
  • Up to 600g cutting force!
  • Effective cutting of:
    diamond grade, high-intensity reflective film, prismatic grade reflective sheeting, sandblast resist rubber, automotive window & paint protection films, self-adhesive vinyl, Amberlith™ and Rubylith™, among other media types.


Download Datasheet (Download PDF)

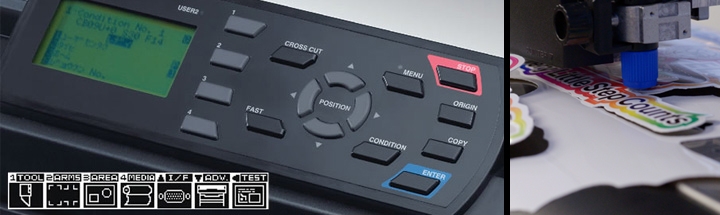

3 inch wide user-friendly LCD control Panel, a Dual configuration function (two-user set and save customized conditions), included Ethernet capability (run multiple machines from one location), and an option for additional push rollers with 3 tension settings and the new 5th Generation ARMS system (automatically detects registration marks with color variants).


Tech Specs

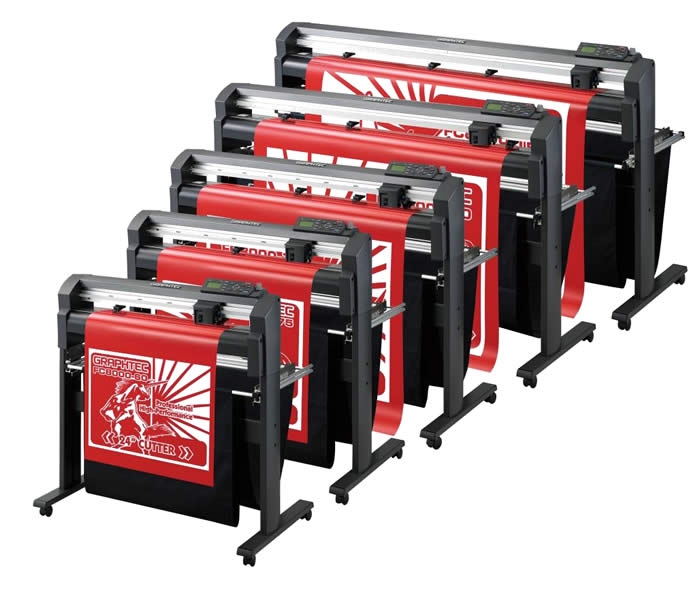

FC8600-60 FC8600-75 FC8600-100 FC8600-130 FC8600-160
Max. media width 30.3” (770 mm) 36.2” (919 mm) 48.2” (1,224 mm) 60.2” (1,529 mm) 72.5” (1,841 mm)
Max. cutting width 24” (610 mm) 30” (762 mm) 42” (1,067 mm) 54” (1,372 mm) 64” (1,625 mm)
Max. cutting speed 58.5”/s (1,485 mm/s) diagonal
Max. cutting thickness 59.1 mil (1.48 mm)
Interface USB 2.0 High-speed / Serial RS-232C / Ethernet interface
Equipment dimensions 44” x 28” x 48”
(1,120 x 711 x 1,219 mm)		 50” x 28” x 48”
(1270 x 711 x 1,219 mm)		 61.8” x 28” x 48”
(1,570 x 711 x 1,219 mm)		 73.6” x 28” x 48”
(1,870 x 711 x 1,219 mm)		 84” x 28” x 48”
(2,130 x 711 x 1,219 mm)
Package weight 106 lb (48 kg) 115 lb (52 kg) 133 lb (60 kg) 150 lb (68 kg) 161 lb (73 kg)
